Name: High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1021A
Price: 5800 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China, Guangdong

Marca: YUSH

Certificação: CE

Número do modelo: CT-1021A

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1

Preço: USD5800

Detalhes da embalagem: Estojo de madeira

Tempo de entrega: 20 dias de trabalho

Termos de pagamento: L/c, d/a, d/p, t/t

Habilidade da fonte: 1000

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:
                                                                                                                                                                                                                semi-automatic press-fit machine, desktop press-fit machine, high efficiency SMT press-fit


Pressão máxima:	0,05T	Método de controle:	Motor industrial de PC+servo
Golpe de imprensa eficaz:	100 mm	Pressione o tamanho do bloco:	100L x 50W mm
Dispositivo de segurança:	Cortina leve

Pressão máxima:	0,05T
Método de controle:	Motor industrial de PC+servo
Golpe de imprensa eficaz:	100 mm
Pressione o tamanho do bloco:	100L x 50W mm
Dispositivo de segurança:	Cortina leve

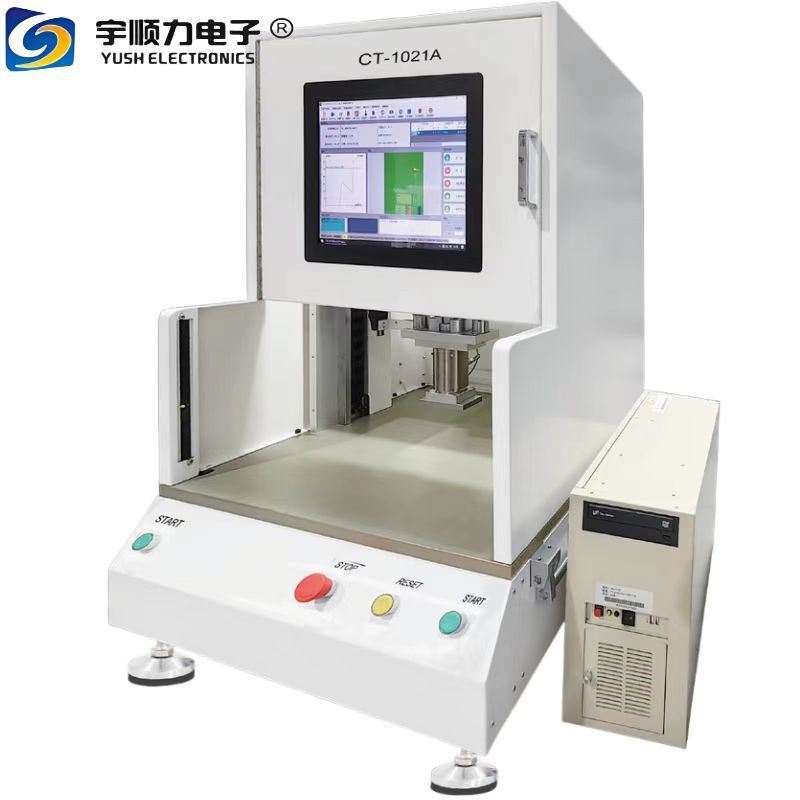

High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine

Product Characteristics

H-shaped structure: Consists of two vertical frames and horizontal beam with high compressive strength and deformation resistance, ensuring equipment stability
Servo motor drive enables real-time monitoring of pressure, displacement, and speed
Precise control of ram displacement and speed achieves high-precision press-fitting, effectively avoiding overpressure and underpressure
Real-time pressure monitoring with closed-loop control throughout the pressing process
Controlled by industrial computer with comprehensive SPC management, log management, user permission management, and program management
Equipped with mold and component databases for data management, with unlimited program capacity
Features pressure curve sampling control, curve slope control, and pressure/position/speed control for high-quality dynamic controllable pressing
Automatic saving, envelope, and analysis software package for pressure curve
Component alignment via laser-assisted positioning
Safety measures include dual-button start and light curtain to ensure operational safety
Supports both Chinese and English interfaces, with MES data transmission capability
Offers online and offline programming functionality
