Name: YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-G6565
Price: 30000 USD
Availability: InStock

Detalhes do produto

Lugar de origem: Guangdong

Marca: YUSH

Número do modelo: YS-G6565

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1

Preço: USD30000

Tempo de entrega: 20 dias úteis

Termos de pagamento: L/C, D/A, D/P, T/T, Western Union

Habilidade da fonte: 100

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:

Peso:	500KG	Modelo:	YS-G6565
Precisão de posicionamento:	± 2 μm	Potência do Laser:	QCW-150W/1500W
Tamanho da pinça:	680 mm*720 mm

Peso:	500KG
Modelo:	YS-G6565
Precisão de posicionamento:	± 2 μm
Potência do Laser:	QCW-150W/1500W
Tamanho da pinça:	680 mm*720 mm

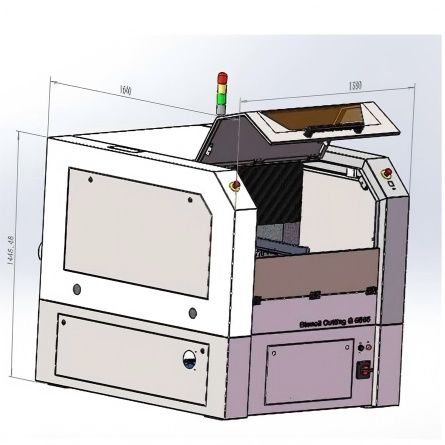

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Equipment Introduction

G6565Laser cutting machine is a new generation of laser cutting machine, compared with the previous models in terms of performance or humanized operation design, has been significantly improved. According to the market demand of customers, the overall performance of the equipment has been raised to a new level. While improving the cutting speed, it also ensures excellent cutting quality. The performance and operability are completely comparable to imported equipment, and the cost performance is much higher than imported machines.

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine 0

Parameter

Machine Model	YS-G6565
Laser Power	QCW-150W/1500W
Laser Wavelength	1070nm
Beam Quality	M²<1.1
Cutting Speed	About 23000 pad/h
Working Range	650mm*650mm
Clamping Size	680mm*720mm
Overall Dimension	1640mm1380mm1500mm
Cutting Accuracy	±0.01mm (Specified material)
Positioning Accuracy	±2μm
(Repeated positioning accuracy)	±2μm
Cooling Way	Air cooling/water cooling
(Auxiliary cutting gas)	Oxygen 8-10Kg Compressed air16Kg

Product Features

1.Adopting double drive structure of linear motor with iron core, high inertia and large thrust, the maximum acceleration can reach 2.0G, ensuring high-speed and accurate action of the equipment;

2.The use of American imported drivers, advanced adjustment andsetting algorithms greatly improve cutting performance and ensure processing accuracy;

3.Imported IPG fiber laser, stable output power, long life, maintenance-free, vertical smooth processing hole wall, but also to ensure the stability of the processing process;

4.The whole machine adopts natural marble as the matrix structure,which is safe and stable;

5.Equipped with high-precision grating ruler full closed-loop system,real-time feedback, reduce repeated positioning error;

6.Convenient operation: the man-machine interface is simple and easy to understand, can process any plane graphics, the equipment is small in size;

7.The equipment has high reliability and can be continuously and stably produced for 24 hours to meet the needs of industrial mass production and process in Customized customization ability, can be tailored to customer needs to

create exclusive models;

Introduction of main modules of equipment:

1.Motion Module:

2.Rack Platform

3.Specification
