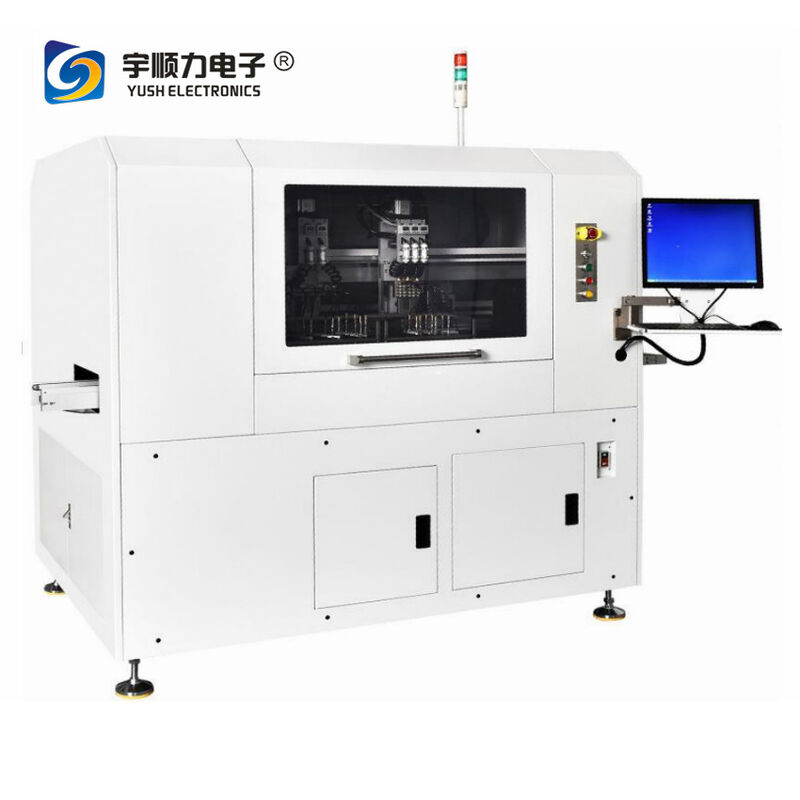

Detalhes do produto
Lugar de origem: Cantão, China
Marca: YUSH
Termos do pagamento & do transporte
Quantidade de ordem mínima: 1 conjunto
Preço: $50,000-100,000 / set
Peso: |
1000kg |
Poder: |
10 kw |
Tensão: |
220 V |
Precisão de corte: |
±0.08mm |
Repetibilidade: |
±0,02mm |
Faixa de trabalho: |
400 mmX400 mm |
Espessura da PCB: |
0.3mm-6mm |
Velocidade do fuso: |
80.000/min |
Tamanho do equipamento: |
1590x1330x1650mm |
Marcar tipos de pontos: |
Redondo, quadrado |
Tamanho do aspirador: |
750x580x615mm |
Estresse máximo: |
-240 ~ 130 MicroN/mm |
Tamanho do cortador: |
0.8mm-3.0mm |
Fonte de gás: |
² de 4-6kg/cm |
Precisão de filtragem de poeira: |
0,0001 |
Peso: |
1000kg |
Poder: |
10 kw |
Tensão: |
220 V |
Precisão de corte: |
±0.08mm |
Repetibilidade: |
±0,02mm |
Faixa de trabalho: |
400 mmX400 mm |
Espessura da PCB: |
0.3mm-6mm |
Velocidade do fuso: |
80.000/min |
Tamanho do equipamento: |
1590x1330x1650mm |
Marcar tipos de pontos: |
Redondo, quadrado |
Tamanho do aspirador: |
750x580x615mm |
Estresse máximo: |
-240 ~ 130 MicroN/mm |
Tamanho do cortador: |
0.8mm-3.0mm |
Fonte de gás: |
² de 4-6kg/cm |
Precisão de filtragem de poeira: |
0,0001 |
| Parameter | Specification |
|---|---|
| Effective Cutting Size | Double working platform, maximum working range of single platform 400mm×400mm |
| Dust Collection Method | Anti-static, explosion-proof filter bags with foolproof device and automatic alarm system; filtering accuracy 0.0001 |
| Cutting Spindle | German Sycotec (ESD) speed: 80,000 rpm adjustable (air cooling) |
| Tool Change Method | Automatic milling cutter replacement with life monitoring |
| Broken Tool Detection | Equipped with broken tool detection system |
| Workbench Mode | Panasonic servo motor + precision ground screw + precision slide |
| Servo Motor Brand | Japan Matsushita |
| Computer System | Taiwanese industrial computer with Windows 7 genuine system |
| Static Eliminator | Schneider France |
| Information Management | MES system support with Ethernet interface and TCP/IP protocol |
| CCD Camera Structure | Flying camera structure with height differentiation capability |
| MARK Point Recognition | Full type recognition and correction standard |
| LED Aperture Control | Software-adjustable color difference and brightness |
| Operator Authority | Four-level password protection |
| Expansion Function | Reserved ports for future robot or automation integration |
| Parameter | Specification |
|---|---|
| Cutting Accuracy | ±0.08mm |
| Repeatability | ±0.02mm |
| Maximum Working Range | 400mm × 400mm |
| PCB Cutting Thickness | 0.3mm - 6mm |
| Applicable Cutter Size | 0.8mm - 3.0mm |
| Mark Point Types | Round, Square |
| Cutting Functions | Straight line, sector shape, circle shape, universal copy, automatic correction and compensation |
| Parameter | Specification |
|---|---|
| XYZ Control Method | CNC Dedicated Controller |
| XYZ Drive Mode | Panasonic AC Servo |
| Maximum Spindle Speed | 80,000 rpm |
| Vacuum Method | Suck up |
| Router Type | Suction up (right-handed) |
| PCB Support Method | Universal top PIN, special fixture |
| Equipment Power | AC 220V |
| Vacuum Cleaner Power | AC 380V |
| Gas Source | 4-6kg/cm² |
| Equipment Size (L×W×H) | 1590×1330×1650mm |
| Vacuum Cleaner Size (L×W×H) | 750×580×615mm |
| Total Weight | 1000 KG |
