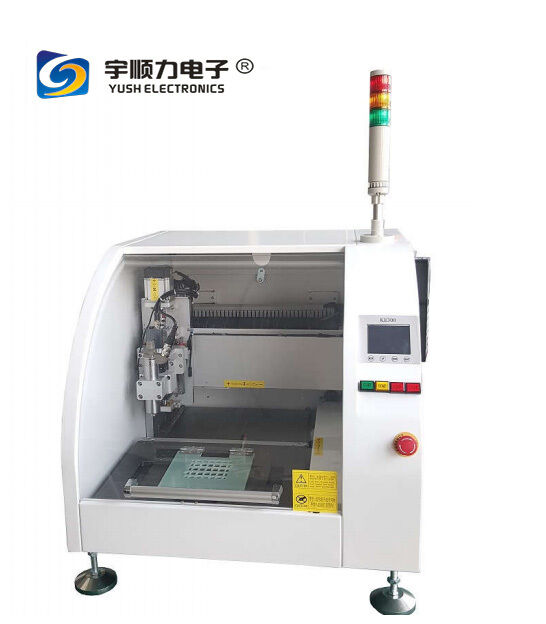

Desktop PCB Router Milling Machine

Detalhes do produto

Lugar de origem: Cantão, China

Marca: YUSH

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1 conjunto

Preço: $10,000 / set

Obtenha o melhor preço
Destacar:

desktop PCB router milling machine

,

PCB depaneling machine with warranty

,

compact desktop PCB milling machine

Peso:
135 QUILOGRAMAS
Poder:
10 kw
Tensão:
220V/380V
Modelo:
YS-L530
Dimensão:
L623*W737*H587mm
Potência da máquina:
3.6kW
Potência mais limpa:
2.2KW/220V
Dimensão da tabela:
260 mm*260 mm
Velocidade de corte:
0-100mm/s
Precisão de repetibilidade:
±0,01mm
Área de Trabalho:
X:0-260mm, Y:0-260mm, Z:0-80mm
Espessura da PCB:
0,5-5 mm
Diâmetro do bit do roteador:
0,8-3,0 mm
Velocidade do fuso:
60000RPM
Air Press:
0,4MPa
Peso:
135 QUILOGRAMAS
Poder:
10 kw
Tensão:
220V/380V
Modelo:
YS-L530
Dimensão:
L623*W737*H587mm
Potência da máquina:
3.6kW
Potência mais limpa:
2.2KW/220V
Dimensão da tabela:
260 mm*260 mm
Velocidade de corte:
0-100mm/s
Precisão de repetibilidade:
±0,01mm
Área de Trabalho:
X:0-260mm, Y:0-260mm, Z:0-80mm
Espessura da PCB:
0,5-5 mm
Diâmetro do bit do roteador:
0,8-3,0 mm
Velocidade do fuso:
60000RPM
Air Press:
0,4MPa
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop  PCB  Router  Milling  Machine 0
Key Features
  • Bottom dust collection system utilizing free fall theory for optimal dust removal
  • Specialized fixtures ensure secure positioning to maintain cutting accuracy
  • Automatic system correction based on product installation position for high-precision cutting
  • Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
  • Safety door design reduces noise, contains dust, and enhances operational safety
  • Integrated dust collection box with maintenance scheduling based on cutting requirements
Applications
Ideal for separating stamp hole PCB boards and irregular joint PCB boards
Desktop  PCB  Router  Milling  Machine 1
Technical Specifications
Function Items Hardware Demand
Model YS-L530
Dimension L623*W737*H587mm
Power 220V/50HZ
Machine Power 3.6KW
Weight About 300KG
Cleaner Dimension Inside / L650*W500*H550mm
Cleaner Wattage 2.2KW/220V
Table Dimension 260mm*260mm
Cutting Speed 0-100mm/s
X,Y,Z Axis Driving Speed X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy ±0.01mm
Working Area X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness 0.5-5mm
Router Bit Diameter 0.8-3.0mm
Cutting Precision ±0.01mm
Cutting Ability Linear, Circular, U-curve, Arc, L-curve
Cutter Change Manual, tools needed
Spindle Speed 60000rpm
Spindle Cooling System Air cooling mode
Safety Device Safety door and door lock sensor
Voice Control ≤78 dB (measured in 1M distance)
