Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                semi-auto SMT PCB assembly line, high speed PCB depaneling machine, high precision PCB production line


Peso:	1200kg	Precisão:	+/- 0,05 mm
Tamanho da placa de circuito impresso:	300 x 350 mm	Tamanho da plataforma:	300 x 350 mm
Tamanho do estêncil:	370470,550650	Espessura da PCB:	0.2 - 6 mm
Posicionamento do estêncil:	Manual	Tempo de ciclo:	< 10 seg.
Consumo de energia:	200 w	Fonte de energia:	1 -PH, 220VAC 50/60HZ
Pressão do Ar:	4.5 a 6 kg/cm	Velocidade do rodo de borracha:	0-1500 mm/seg
Dimensão:	850x750x1650mm	Comprimento do rodo de borracha:	250mm
Altura da plataforma:	950 mm

Peso:	1200kg
Precisão:	+/- 0,05 mm
Tamanho da placa de circuito impresso:	300 x 350 mm
Tamanho da plataforma:	300 x 350 mm
Tamanho do estêncil:	370470,550650
Espessura da PCB:	0.2 - 6 mm
Posicionamento do estêncil:	Manual
Tempo de ciclo:	< 10 seg.
Consumo de energia:	200 w
Fonte de energia:	1 -PH, 220VAC 50/60HZ
Pressão do Ar:	4.5 a 6 kg/cm
Velocidade do rodo de borracha:	0-1500 mm/seg
Dimensão:	850x750x1650mm
Comprimento do rodo de borracha:	250mm
Altura da plataforma:	950 mm

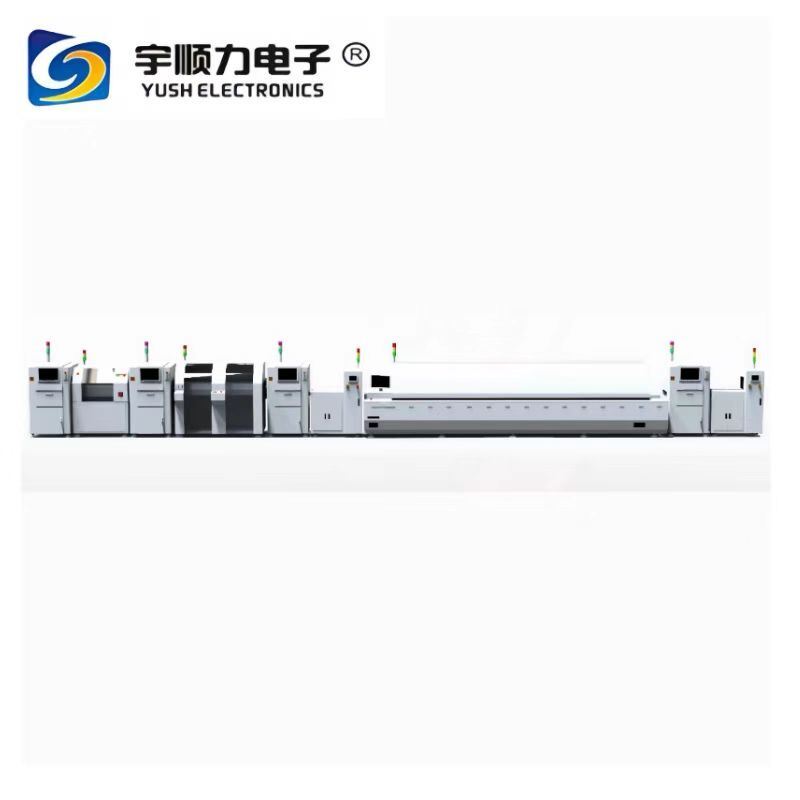

High Precision High Speed Semi-auto SMT PCB Assembly Production Line

This high-speed semi-automatic SMT production line delivers exceptional performance with placement speeds reaching approximately 156,000 CPH. Ideal for mobile phone and LED TV manufacturing, this assembly line ensures precision and efficiency in PCB assembly operations.

SMT Production Line Specifications

SMT Line Models

Model	Y3	Y6	Y12
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform Size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size (mm)	370470, 550650	370470, 550650	370470, 550650, 1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg

Customization Option: Special sizes can be customized to meet specific production requirements.

Reflow Oven Specifications

Model	L8	L10
Dimension (LWH) mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3121mm	3891mm

Model	622	733
Dimension (LWH) mm	50401451450	580014501450
Machine Weight	Approx. 2200KG	Approx. 2400KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3030mm	3730mm
Number of Cooling Zones	2	3
Max. Width Of PCB	460mm	460mm
Power For Warm Up	45kw	55kw
Power Consumption	8kw	10kw

About YUSH Electronic Technology

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. We specialize in professional PCB separator and PCB depaneling electronic equipment machinery.

Our company features advanced production and processing equipment supported by an experienced development and manufacturing team, with half of our staff possessing over 10 years of experience in the electronic equipment industry.

Since 2004, our leadership has invested in developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, safety, and innovation, resulting in numerous high-quality, stable-performance, and cost-effective products that improve production yields and enhance our customers' market competitiveness.

We offer various PCB separating solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. Our commitment to quality and competitive pricing has established a global customer base, making YUSH one of China's largest PCB separator production bases.
