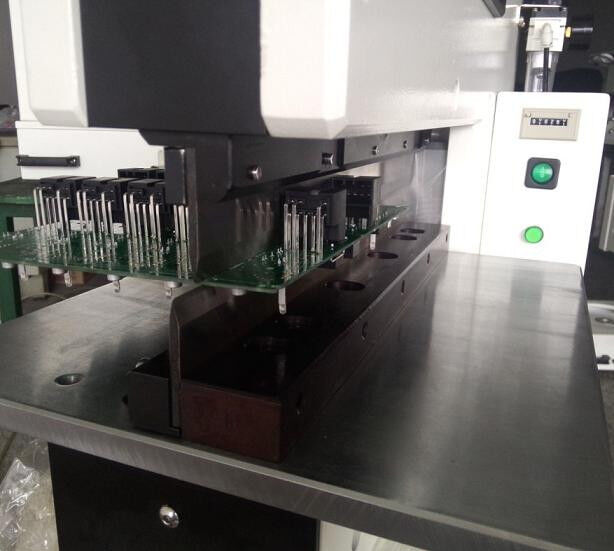

Automatic LED Strip PCB Depanel Machine YSVC-2
The YSVC-2 Automatic LED Strip PCB Depaneling Machine offers precision separation of pre-scored panel boards with advanced pneumatic drive technology, ensuring safe processing even for delicate PCBs with sensitive SMD components.
Key Features
- Easy maintenance and operation
- Safe shearing of thin PCBs down to 0.3mm thickness
- Vibration-free shearing process with pneumatic drive unit
- Pneumatically driven with electromagnetic valve control
- Foot pedal operation for precise control
- Accommodates components up to 70mm near V-groove
- Minimum 0.5mm clearance between V-groove and components
- Adjustable PCB insertion gap with front knob control
Technical Specifications
| Maximum Board Length |
330mm (Custom lengths available) |
| Cutting Thickness Range |
0.3-3.5mm |
| Voltage and Power |
110V/220V |
| Working Air Pressure |
0.5-0.7Mpa |
| Machine Dimensions |
620×230×400mm |
| Weight |
165kg |
Advanced Operation Features
Straight knife PCB separator with pneumatic drive and electric control ensures careful separation of pre-scored panel boards without bending or tension stress. The specialized knife design safely processes boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.
Performance Advantages
- Vibration-free operation protects precision PCB components
- Low friction design with top-side adjustable insertion gap
- Separately adjustable front and rear lower knife height
- No thin plates required after knife re-sharpening
- Simple operation suitable for unskilled personnel
