Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic PCB V groove cutting machine, PCB depaneling V-cut machine, V-cut PCB depaneling equipment


Tensão:	220 V	Peso:	185 quilogramas
Poder:	3,7 quilowatts	Largura de corte:	70 mm longitudinais
largura:	380mm	Faixa de espessura:	0,6 ~ 2,5 mm
Velocidade de corte:	12 mm/min	Total de lâminas:	10 unidades superiores, 10 unidades inferiores
Número do modelo:	YSV-4A	Espessura máxima:	3,2 milímetros
Capacidade da placa de alumínio:	Poço V≥5	Capacidade da placa de fibra:	Poço V≥8
Potência do motor do fuso:	3 kW	Dimensões:	1200 mm x 980 mm x 1400 mm
Peso da máquina:	145 kg

Tensão:	220 V
Peso:	185 quilogramas
Poder:	3,7 quilowatts
Largura de corte:	70 mm longitudinais
largura:	380mm
Faixa de espessura:	0,6 ~ 2,5 mm
Velocidade de corte:	12 mm/min
Total de lâminas:	10 unidades superiores, 10 unidades inferiores
Número do modelo:	YSV-4A
Espessura máxima:	3,2 milímetros
Capacidade da placa de alumínio:	Poço V≥5
Capacidade da placa de fibra:	Poço V≥8
Potência do motor do fuso:	3 kW
Dimensões:	1200 mm x 980 mm x 1400 mm
Peso da máquina:	145 kg

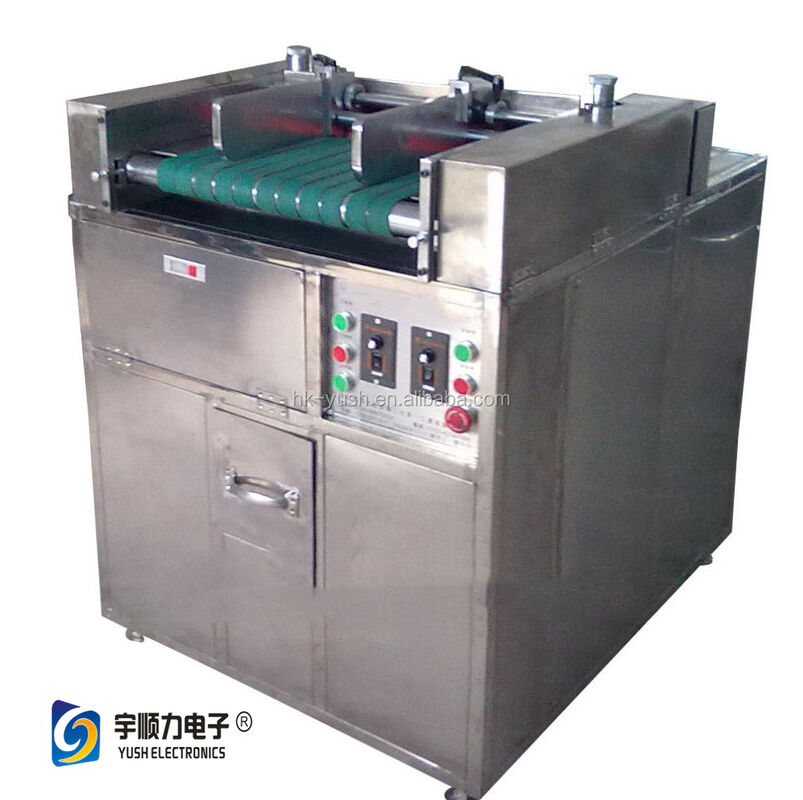

Automatic PCB V groove Machine . V-cut Cutting Machine

Automatic PCB V Groove Machine - V-Cut Cutting Machine

Professional manual V-cut machine for PCB depaneling and scoring applications, designed for precision cutting of printed circuit boards.

Key Specifications

Cutting Width: Longitudinal 70mm; Wide: 380mm

Material Thickness: 0.6-2.5 mm

Cutting Speed: 12 mm/min

Total Blades: Upper 10 pieces, Lower 10 pieces

Operation Guidelines

V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds; thinner plates can use faster speeds. For standard 1.6mm plate thickness, recommended speed is approximately 25.
V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds.
V-CUT knives are not suitable for standard plates when cutting aluminum plates. Aluminum plates with V-cut knife flash can also be used for standard V-cut applications.
When cutting aluminum plates, cooling water or alcohol must be used for cooling.

YSV-4A Aluminum V-Cut Machine Technical Details

480 V-CUT aluminum plate cutting machine designed for high-performance PCB depaneling.

Specification	Details
Model Number	YSV-4A
Cutting Width	75mm wide vertical, 480mm horizontal
Material Thickness	0.8-3.2 mm
Cardboard Capacity	≥10 cuts per pass (10 upper and lower knives)
Aluminum Plate Capacity	≥5 cuts per pass (4 upper and lower knives)
Fiberboard Capacity	≥8 cuts per pass (8 upper and lower knives)
Cutting Speed	8 m/min
Motor Specifications	3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions	1200mm × 980mm × 1400mm (W × D × H)
Weight	145KG
Included Accessories	Washer set, V-CUT knife (4), Shield bearing (10), Wrench set, Hex key set, Blades turret (1)
