Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic SMT tin cream mixer, PCB depaneling tin paste mixer, SMT tin paste mixer machine


Peso:	40KG	Tensão operacional:	AC220V (60Hz) 40W
Velocidade primária:	1400 rpm	Velocidade secundária:	400 RPM
Tamanho da máquina:	410410490MM (WDH)	Peso líquido:	40KG
Peso bruto:	45 kg	comprimento da máquina:	410mm
Modelo:	J40	Configuração de hora:	0,1-9,9 minutos, 0,1 minutos para cada vez
Componentes principais:	Motor, Bomba	Consumo de energia:	40W
Freqüência:	60Hz	Ângulo de rotação:	45 graus
Peso de equilíbrio:	500g

Peso:	40KG
Tensão operacional:	AC220V (60Hz) 40W
Velocidade primária:	1400 rpm
Velocidade secundária:	400 RPM
Tamanho da máquina:	410410490MM (WDH)
Peso líquido:	40KG
Peso bruto:	45 kg
comprimento da máquina:	410mm
Modelo:	J40
Configuração de hora:	0,1-9,9 minutos, 0,1 minutos para cada vez
Componentes principais:	Motor, Bomba
Consumo de energia:	40W
Freqüência:	60Hz
Ângulo de rotação:	45 graus
Peso de equilíbrio:	500g

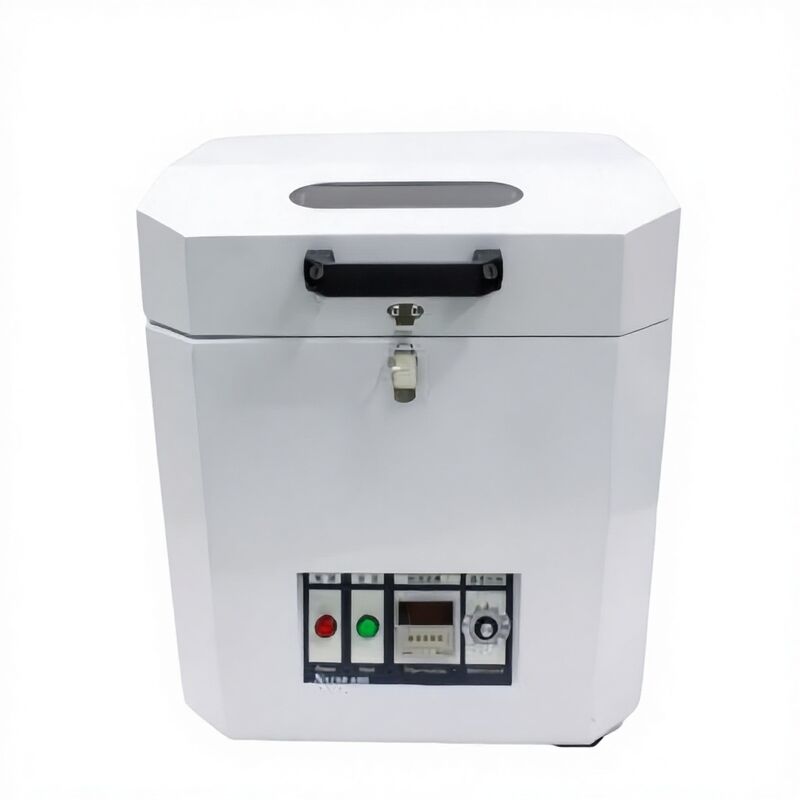

SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine

Fully Automatic SMT Tin Cream Mixer

This high-quality tin paste mixer machine ensures precise mixing of solder paste for optimal SMT production results.

Usage Instructions

For optimal performance: When stirring two cans simultaneously, ensure weights are roughly equal (difference ≤50g). For single can operation, use the provided 500g balance weight or equivalent counterweight. Press the power switch to stop operation. The machine automatically stops when the cover is opened during operation.

Product Maintenance

Regular maintenance extends the service life of this precision mechanical equipment:

Keep the machine clean as it uses fully enclosed bearings
Replace the rotation device belt promptly when damaged (non-durable component)

Safety Precautions

Never open the machine cover or leave it unlocked during operation
Wait for complete machine stop before opening the upper cover
Place machine on stable, solid surface as slight vibration occurs during operation
Immediately power off and inspect if excessive vibration occurs

Technical Specifications

Operating Voltage	AC220V (60 HZ) 40W
Operating Speed	Primary: 1400 RPM, Secondary: 400 RPM
Machine Dimensions	410 × 410 × 490mm (W×D×H)
Net/Gross Weight	40kg / 45kg
Time Setting	0.1-9.9 minutes (0.1 min increments), 10-30 minutes (1.0 min increments)

Key Features

Utilizing rotary centrifugal force with 45-degree axis rotation, this mixer creates a whirlwind funnel mixing action that softens paste, eliminates clumping, and achieves optimal viscosity for excellent printing and welding performance.

No need to remove tin cream before mixing
Adjustable mixing time and speed with special control circuit
45-degree placement prevents paste attachment to tank cover
Smooth operation with low noise, natural temperature return, and bubble removal
Convenient, safe operation without opening tin paste tank
Universal clamp fits various tin paste tank packaging
No moisture issues or tin powder shape damage
220V power supply with safety protection devices

Operation Procedure

Step 1:

Release latch, open machine cover, and confirm no foreign objects inside.

Step 2:

Remove tin paste and 500g balance weight.

Step 3:

Place tin paste and balance weight in tank (cancel balance weight when mixing 2 bottles).

Step 4:

Manually rotate tin paste jar to confirm no collision, close cover, and power on.

Step 5:

Set mixing time (recommended: 5 minutes). Time controller: H=hours, M=minutes, S=seconds.

Step 6:

Press start key (indicator light on), machine operates at high speed until automatic stop.

Step 7:

After completion, press power switch to turn off power supply.
