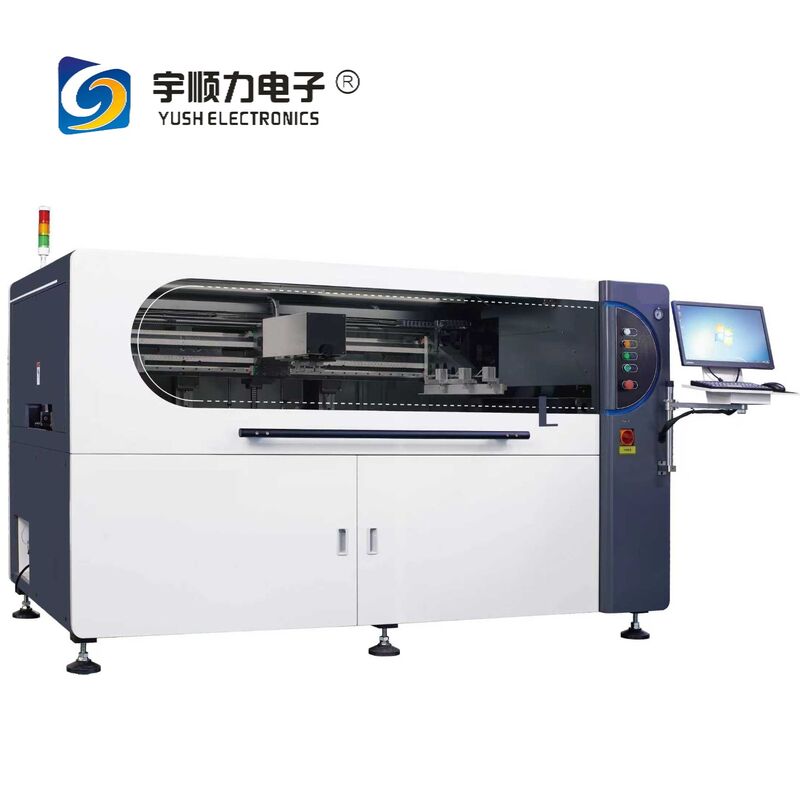

YS-12 Fully Automatic High Efficiency Visual Printer

The YS-12 fully automatic visual printing machine is engineered for mini LED, semiconductor printing, and new energy applications. It delivers exceptional performance for 01005 components, 0.25mm pitch with equal spacing, and high-precision process requirements.

Technical Specifications

Screen Frames

Parameter	Specification
Min Size	520×300mm
Max Size	1500×750mm
Thickness	20-40mm
Stencil Position Mode	Manual positioning

PCB Board Parameters

Parameter	Specification
PCB Min Size	50×50mm
PCB Max Size	1200×350mm
PCB Thickness	0.4-6mm
PCB Warpage	<1%
PCB Board Edge Clearance	2.5mm
Board Height	25mm
Transport Height	900±40mm
Transport Speed	Max 1500mm/s Programmable
Transport Mode	One section transportation track
Maximum PCB Board Weight	7kg
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Parameter	Specification
Printing Speed	10-200mm/sec
Printing Pressure	0.5-25kg
Printing Mode	Single or double squeegee printing
Release Distance	0-20mm
Snap-Mode	Three stage demolding
Squeegee Type	Rubber squeegee/Steel squeegee
Release Speed	0-20mm/sec

Printing Accuracy

Parameter	Specification
Repeat Position Accuracy	±0.015mm
Printing Accuracy	±0.025mm
Cycle Time (Excluding Cleaning)	<15 seconds
Changeover Time	<5 minutes

Cleaning Parameters

Parameter	Specification
Cleaning Stroke	Automatic generation
Cleaning Position	Right cleaning
Cleaning Speed	10-200mm/sec
Cleaning Fluid Consumption	Auto & manually adjustable
Cleaning Paper Consumption	Auto & manually adjustable

Image Parameters

Parameter	Specification
CCD FOV	10×8mm
Camera Type	130 megapixel digital camera
Camera System	Lock up/down option structure
Camera Cycle Time	150ms
Mark Size	0.1-6mm
Stay Away Number	Max: 1 piece
Mark Number	Max: 4 pieces
2D Detection	Detect low tin/missing print/continuous tin

Functional Configuration

Safety Control: Door open to stop, abnormal alarm
Smart UI: Brand new interface, shortcut key operation
Permission Setting: Freely configurable operator, technician, and engineer access levels
Standard MES System: Customized Industry 4.0 solutions, SOP recording, equipment data upload
SPI Connection: Automatic offset compensation, less tin detection, automatic steel mesh cleaning
Traceability System: Camera scan code, compatible with 2.5×2.5-8×8mm sizes

Installation & Site Requirements

Parameter	Specification
Machine Weight	1500kg
Main Power Supply	AC: 220±10V; 50/60Hz, 3.5KW with stable current and power supply
Ground Wire	Equipment requires separate grounding
Plug Type	English SS145 (13A)
Main Air Supply Source	4.0-6kgf/cm² industrial gas source, 8mm straight airway diameter
