                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT pick and place robot, automatic SMT machine, PCB depaneling robot


Peso:	1860 kg	Poder:	10 kw
Tensão:	220V/380V	Quantidade do bocal:	8
Capacidade do alimentador:	Alimentador de tigela (8 pistas) +58 slots	Velocidade de colocação:	26.000 fichas/h
Componente aplicável:	0201 ~ 36 mm CI	Fonte de ar:	0,5 ~ 0,8MPa
Tamanho do tabuleiro:	50 mm x 50 mm ~ 510 mm x 460 mm	Espessura da placa:	0.8 mm~3.0 mm
Peso da placa:	0,68kg abaixo	Especificação do alimentador:	8 mm ~ 56 mm
Resolução da grade:	5um	Precisão de repetição:	± 0,04 mm
Tamanho da máquina:	L1380mmxL2350mmxA550mm

Peso:	1860 kg
Poder:	10 kw
Tensão:	220V/380V
Quantidade do bocal:	8
Capacidade do alimentador:	Alimentador de tigela (8 pistas) +58 slots
Velocidade de colocação:	26.000 fichas/h
Componente aplicável:	0201 ~ 36 mm CI
Fonte de ar:	0,5 ~ 0,8MPa
Tamanho do tabuleiro:	50 mm x 50 mm ~ 510 mm x 460 mm
Espessura da placa:	0.8 mm~3.0 mm
Peso da placa:	0,68kg abaixo
Especificação do alimentador:	8 mm ~ 56 mm
Resolução da grade:	5um
Precisão de repetição:	± 0,04 mm
Tamanho da máquina:	L1380mmxL2350mmxA550mm

SMT Multi-functional Pick and Place Robot/Automatic SMT Machine

SMT Multi-functional Pick and Place Robot / Automatic SMT Machine

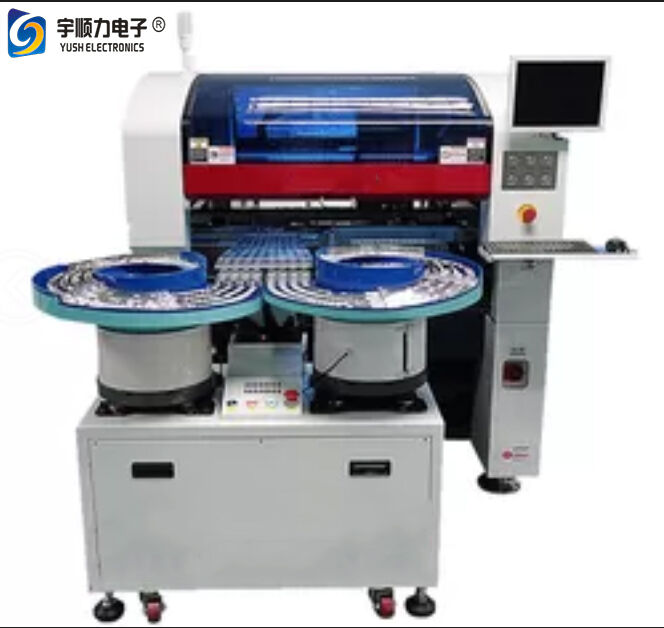

The YS-CPM-II T offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display back-lights. With its innovative Bowl feeder + Slot Feeder design, it can simultaneously handle lens and chip component placement tasks.

Basic Information

Function: Lens-Mounter
Nozzle Quantity: 8
Feeder Capacity: Bowl Feeder (8 Lanes) + 58 Slots
Placement Speed: 26,000 Chips/H
Applicable Component: 0201~36mm IC

Technical Specifications

Specification	Details
Air Source	0.5~0.8Mpa
Alignment Scanning	For Centering
Applicable Component	From The Tiny Chip Of 0201 To The Large Component Of 30mm With Various Of Resistors And Capacitors, IC, BGA, LED Lens, LED Board
Board Size	Minimum 50mmx50mm Maximum 510mmx460mm
Board Thickness	0.8mm~3.0mm
Board Weight	0.68Kg Below
Control System	Windows 7 Control Platform Of The Chinese and English Interface
Feeder Capacity	16 Columns
Feeder Specification	8mm~56mm
Grating Resolution	5um
Weight	1850Kg
Track Length	1980mm
Repeat Accuracy	±0.04mm
Power	AC380V
Plywood Way	Side-on, Top and Bottom
Placement Speed	26000 cph
PCB Transmission Mechanism	Three Phrases
Nozzle Quantity	8
Machine Size	L1380mmxW2350mmxH550mm
Lens Size	5~30mm

Key Features

High-rigidity, High-accuracy and High-stability Base: Base and Y axis are made by integrated design, X axis uses high-hardness aluminium alloy and is suppressed into shape by a molding machine. Fast assembling prevents deformation.
High-speed, High-precision and Long-life X/Y Axis: Features THK rolling guides from Japan, Sanyo linear motors, and Renishaw grating ruler for exceptional motion precision.
Advanced Self-researched Vibration Platform: Bowl Feeder vibrates components into 8 lanes for simultaneous placement. Equipped with accurate sensors to prevent jams and breakdowns.
High Precision Working Head: Made from aviation-grade aluminum with Japanese micro servo motor and IKO guide rail for high-speed, high-accuracy Z axis movement.
Scanning Camera With Excellent Performance: Uses Germany BASLER linear scan camera with OSRAM ring-shaped light sources for optimal imaging.
Automatic Plastic-tape Cutting Blade: Made from top-level steel for extended service life and reliable operation.
Multi-functional Board Conveyor: Features top, bottom and side-on board clamping with flexible adjustment. Extended rail accommodates boards up to 1200mm in length.
