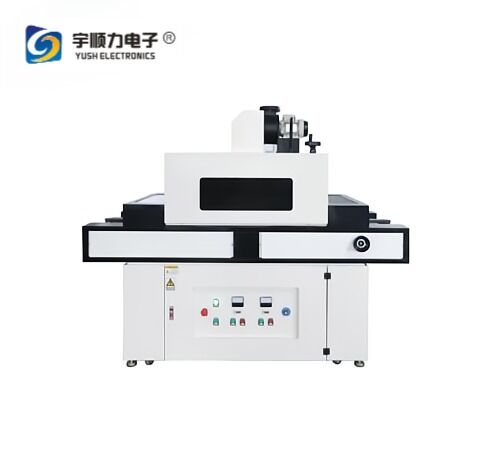

UV Curing Oven Drying Oven

Detalhes do produto

Lugar de origem: Cantão, China

Marca: YUSH

Número do modelo: YS-U1

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1 conjunto

Preço: $10,000 / set

Obtenha o melhor preço
Destacar:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Peso:
350KG
sistema de controle:
instrumento
Velocidade do transportador:
100 ~ 3000 mm/min
Quantidade de luz UV:
1 CONJUNTO
Potência da luz UV:
2Kw/conjunto
Vida útil da lâmpada UV:
1000-1200 horas
Material transportador:
Cinto de malha de teflon
Largura efetiva:
50-450mm
Área de refrigeração:
Independente
Tipo de motor:
Importado
Ajuste de velocidade:
0-2000mm/min
Tipo de reflector:
Refletor de alta luz
Material da cadeia:
Aço inoxidável
Controle da lâmpada:
Controlo separado
Altura da lâmpada:
Ajustável
Peso:
350KG
sistema de controle:
instrumento
Velocidade do transportador:
100 ~ 3000 mm/min
Quantidade de luz UV:
1 CONJUNTO
Potência da luz UV:
2Kw/conjunto
Vida útil da lâmpada UV:
1000-1200 horas
Material transportador:
Cinto de malha de teflon
Largura efetiva:
50-450mm
Área de refrigeração:
Independente
Tipo de motor:
Importado
Ajuste de velocidade:
0-2000mm/min
Tipo de reflector:
Refletor de alta luz
Material da cadeia:
Aço inoxidável
Controle da lâmpada:
Controlo separado
Altura da lâmpada:
Ajustável
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven
Product Overview
YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
