YS-12T-Automatic Tape and Reel Packaging Equipment

Detalhes do produto

Lugar de origem: Cantão, China

Marca: YUSH

Certificação: CE

Número do modelo: YS-12T

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1 conjunto

Preço: $6,000 / set

Obtenha o melhor preço
Destacar:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Peso:
160kg
Tensão:
220 VCA
Fonte de energia:
AC200V/50Hz
Pressão de ar de trabalho:
0,40~0,6Mpa
Capacidade:
3K-15K UPH
sistema de controle:
Controlador lógico programável + tela sensível ao toque + servo motor
Controle de temperatura:
Controle de temperatura do PID
Alimentando e Recebendo:
Discos de borracha e discos de papel em conformidade com o padrão EIA-481
Largura da fita:
12,16mm
Formulário de selagem:
Selos quentes e frios
Tensão de entrada:
CA220V/50Hz
Corrente Máxima:
10A
Tamanho da máquina:
2030*528*583(C*L*A)
Peso líquido:
160 kg
Configuração seletiva:
Sistema de detecção de imagem
Peso:
160kg
Tensão:
220 VCA
Fonte de energia:
AC200V/50Hz
Pressão de ar de trabalho:
0,40~0,6Mpa
Capacidade:
3K-15K UPH
sistema de controle:
Controlador lógico programável + tela sensível ao toque + servo motor
Controle de temperatura:
Controle de temperatura do PID
Alimentando e Recebendo:
Discos de borracha e discos de papel em conformidade com o padrão EIA-481
Largura da fita:
12,16mm
Formulário de selagem:
Selos quentes e frios
Tensão de entrada:
CA220V/50Hz
Corrente Máxima:
10A
Tamanho da máquina:
2030*528*583(C*L*A)
Peso líquido:
160 kg
Configuração seletiva:
Sistema de detecção de imagem
YS-12T-Automatic Tape and Reel Packaging Equipment

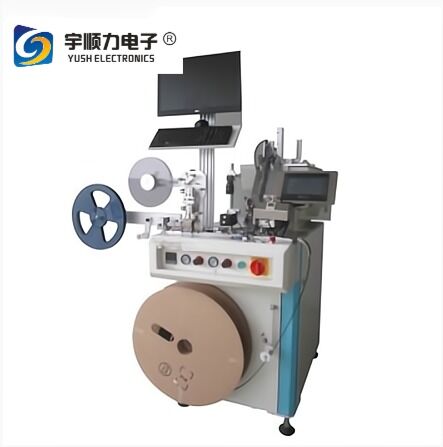

YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
