Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT industrial vacuum cleaner, laser engraving vacuum cleaner, PCB depaneling machine vacuum


Peso:	300kg	Poder:	10 kw
Tensão:	220V/110V	Tamanho:	9006001450 mm
Nível de ruído:	70dB	Tensão do motor:	380 V
Opções de energia:	4 kW - 7,5 kW	Área de filtragem:	18m2
Precisão de Filtragem:	0.3μm	Fluxo de ar:	440-530 m³/h
Grau de vácuo:	-29 a -32 Kpa	Diâmetro de sucção:	40/50mm
Capacidade da poeira:	15 litros	Cabo de alimentação:	8 metros
Pressão do Ar:	1Kpa ≥valor de trabalho≥0,4Kpa

Peso:	300kg
Poder:	10 kw
Tensão:	220V/110V
Tamanho:	9006001450 mm
Nível de ruído:	70dB
Tensão do motor:	380 V
Opções de energia:	4 kW - 7,5 kW
Área de filtragem:	18m2
Precisão de Filtragem:	0.3μm
Fluxo de ar:	440-530 m³/h
Grau de vácuo:	-29 a -32 Kpa
Diâmetro de sucção:	40/50mm
Capacidade da poeira:	15 litros
Cabo de alimentação:	8 metros
Pressão do Ar:	1Kpa ≥valor de trabalho≥0,4Kpa

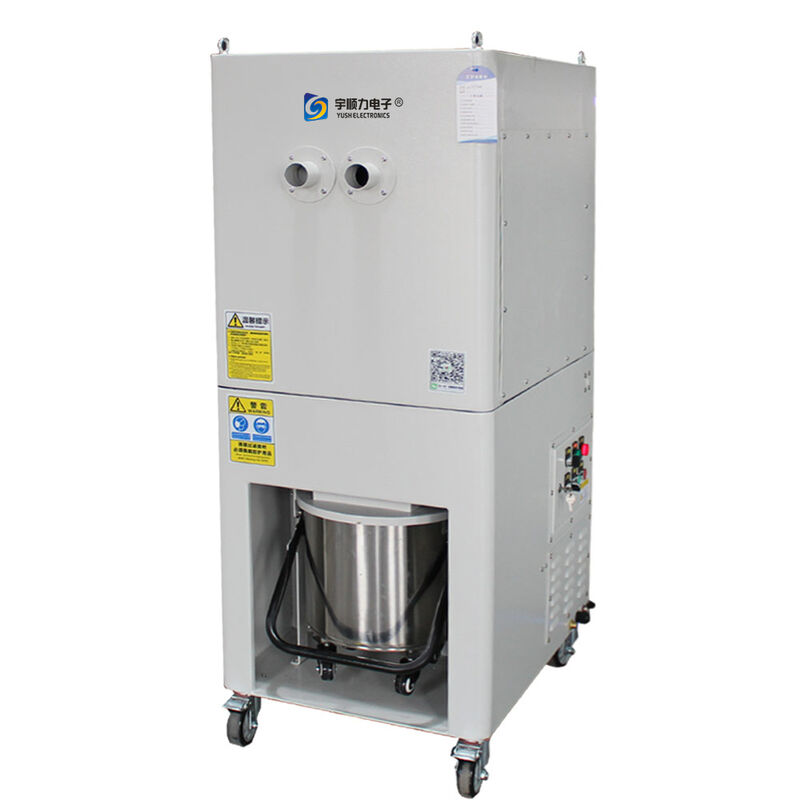

High Efficiency SMT Industrial Vacuum Cleaner for Laser Engraving Machine

Precision Laser Cutting Dust Removal

Applicable Working Conditions

This industrial vacuum cleaner is specifically designed for laser engraving machines and suitable for automated equipment, robotic welding, and various production equipment applications.

Product Overview

The YUSH T series laser engraving machine vacuum cleaner is an industrial-grade specialized unit designed to support automation equipment. Operating at 380V with power options ranging from 4KW to 7.5KW, this vacuum cleaner can work continuously for 24 hours. It features standard local/remote control switching functionality and can be permanently installed on large equipment as a fixed vacuum system with equipment linkage capability.

The system includes 6 HEPA filters with a total filtration area of 18M² and filtration precision of 0.3μm. The programmable pulse cleaning design allows users to set automatic cleaning intervals according to specific working conditions.

Product Highlights

Three-phase electric industrial-grade vortex fan (4KW/5.5KW/7.5KW) capable of 24-hour continuous operation with phase loss, overheating, and overload protection
Split design with noise reduction treatment for optimal acoustic performance and low noise operation
Standard 6 HEPA filters with 18M² total filter area to minimize blockage probability
Programmable pulse cleaning system with adjustable cleaning intervals to eliminate manual maintenance
External large-capacity dust collector for convenient waste disposal
Standard remote/local switch functionality for flexible operation and equipment integration
Cooling louver and cooling fan system to enhance heat dissipation and reduce motor load
Movable universal wheels with brakes for easy machine relocation
Compact footprint with gray-white color scheme compatible with most industrial equipment
Reinforced sheet metal construction with laser cutting, bending, welding, grinding, polishing, spraying, and high-temperature baking paint treatments

Control Panel

Cooling Louver / Cooling Fan

Water Separator

2 Suction Ports

Technical Specifications

Specification	Unit	YS-400P	YS-500P	YS-700P
Power Supply	VAC	380VAC/50HZ
Rated Power	kW	4	5.5	7.5
Air Flow	m³/h	440	530	530
Degree of Vacuum	Kpa	-29	-30	-32
Main Filter Area	m²	18	18	18
Filtration Accuracy	μm	0.3	0.3	0.3
Noise	dB	70	74	76
Equipment Suction Diameter	mm	40/50	40/50	40/50
Barrel Capacity	L	15	15	15
Power Cord Length	m	8	8	8
Air Pressure	Mpa	1Kpa ≥ work value ≥ 0.4Kpa
Size	mm	900 × 600 × 1450
Cleaning Method		Pulse Cleaning
