Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Full Auto Loader PCB depaneling machine, High-Precision SMT line loader, Automated PCB unloader machine


Peso:	220kg	Modelo:	YS-250XT
Fonte de ar:	0,4-0,6Mpa	Altura do trilho:	920±30 mm
Dimensão Geral:	16909151680	Dimensão da revista:	535460565 mm
Dimensão do PWB:	530*390mm	Quantidade de armazenamento de PCB:	100 unidades
Velocidade do transportador:	9m/min	Inclinação da plataforma elevatória:	10,20,30,40
Fonte de energia:	220 V 50 Hz	Potência do motor:	90W
Motor de alimentação:	15W	Correia transportadora:	Cinto plano 7M
Painel de controle:	Tela sensível ao toque LED TFT

Peso:	220kg
Modelo:	YS-250XT
Fonte de ar:	0,4-0,6Mpa
Altura do trilho:	920±30 mm
Dimensão Geral:	16909151680
Dimensão da revista:	535460565 mm
Dimensão do PWB:	530*390mm
Quantidade de armazenamento de PCB:	100 unidades
Velocidade do transportador:	9m/min
Inclinação da plataforma elevatória:	10,20,30,40
Fonte de energia:	220 V 50 Hz
Potência do motor:	90W
Motor de alimentação:	15W
Correia transportadora:	Cinto plano 7M
Painel de controle:	Tela sensível ao toque LED TFT

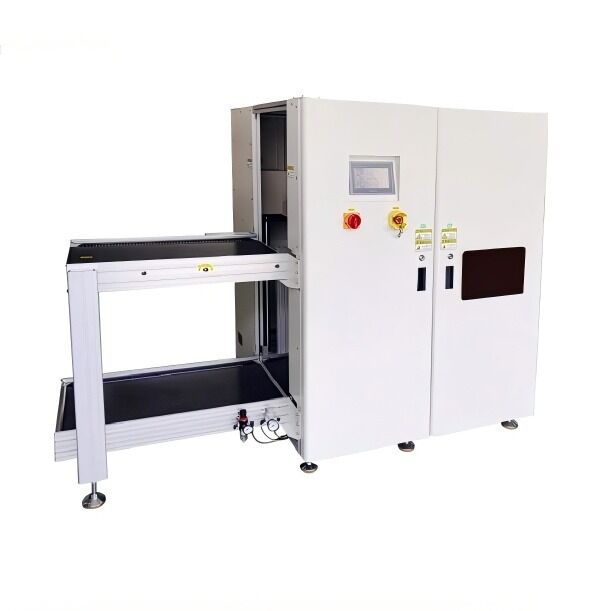

Full Auto Loader & Unloader: High-Precision Automated Smt Line

Full Auto Loader & Unloader: High-Precision Automated SMT Line

Key Features

PLC control system for precise automation
LED TFT touch screen control panel for intuitive operation
Four-step pitch selection (10, 20, 30, 40) for flexible configuration
Anti-clamping plate and foolproof functionality for enhanced safety
Bi-directional operation (left to right or right to left) as standard

Technical Specifications

Overall Dimensions	1690 × 915 × 1680 mm
Guide Rail Material	Special aluminum profile with Qianniao plastic chain
Magazine Drive	90W production brake motor with ball screw for step up/down movement
Feeding Box Transmission	15W constant speed platform motor
Clamping Mechanism	Pneumatic clamp structure
Magazine Specification	535 × 460 × 565 mm (L × W × H)
Maximum PCB Size	530 × 390 mm (L × W)
PCB Storage Capacity	100 pieces
Rail Transmission Height	920 ± 30 mm
Delivery Direction	Right to left / Left to right
Conveyor Belt	7M flat belt
Conveyor Transmission Speed	9 M/min
Lifting Platform Pitch Selection	10, 20, 30, 40
Control System	PLC programmable controller
Operation Features	Automatic board loading and board suction functionality
Control Panel	True color touch screen display
Pneumatic Components	Push plate cylinder position adjusted by screw rod
Power Supply	220V 50HZ
Air Source Requirement	0.4-0.6 MPa
