Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 axis glue dispenser machine, automatic PCB glue dispenser, PCB depaneling glue applicator


Peso:	70KG	Poder:	5 kW
Tensão:	220V, 110V	Velocidade máxima:	400 mm/s
Faixa de trabalho:	100 mm a 500 mm	Área de Trabalho:	300300100mm
Velocidade de movimento X/Y:	500 mm/sec	Velocidade de movimento Z:	400 mm/seg
Tamanho da máquina:	537560820mm	Componentes principais:	PLC, caixa de engrenagens, motor, bomba
Material:	Perfil de alumínio fundido	Tipo de motor:	Motor de passo japonês Xinrong
Guia linear:	Guia linear de prata de Taiwan	Correia síncrono:	Italiano importado
Tipo de cabo:	Cabo blindado à prova de dobras importado

Peso:	70KG
Poder:	5 kW
Tensão:	220V, 110V
Velocidade máxima:	400 mm/s
Faixa de trabalho:	100 mm a 500 mm
Área de Trabalho:	300300100mm
Velocidade de movimento X/Y:	500 mm/sec
Velocidade de movimento Z:	400 mm/seg
Tamanho da máquina:	537560820mm
Componentes principais:	PLC, caixa de engrenagens, motor, bomba
Material:	Perfil de alumínio fundido
Tipo de motor:	Motor de passo japonês Xinrong
Guia linear:	Guia linear de prata de Taiwan
Correia síncrono:	Italiano importado
Tipo de cabo:	Cabo blindado à prova de dobras importado

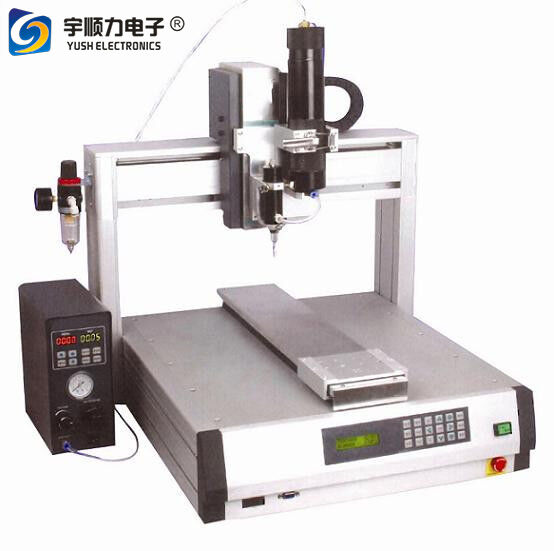

Automatic 3 Axis Glue Dispenser

Product Overview

Compact desktop three-axis dispensing machine designed for efficient batch assembly and distribution operations.

Key Features

Space-saving desktop design ideal for batch assembly operations
High-speed performance at 400 mm/s with exceptional durability
Unique driving circuit eliminates dispensing offset for precision application
Manufacturer's technical expertise ensures application accuracy
Excellent straightness and high-definition tracking capabilities
Clean corner R-shape application without liquid residue or skew
Adjustable working range from 100 mm to 500 mm to suit various workspace requirements
USB connectivity for easy program file upload/download and data management
User-friendly operation interface with intuitive learning curve
CNC-processed machine tool ensures XYZ verticality and enhanced processing accuracy

Hot Melt Adhesive Machine Advantages

Die-cast aluminum profile structure for aesthetic appearance and structural consistency
CNC-machined components ensuring part accuracy and uniformity
Standardized assembly process with 100% strict calibration standards
Premium core components: Japanese Xinrong stepper motor, Italian imported synchronous belt, Taiwan silver linear guide
Smooth, quiet operation during high-speed glue dispensing
Special assembly process for synchronous pulley and motor with Japanese technology belts
Modular assembly design allowing quick replacement of individual components
Import brand fold-proof shielded cables for reliable operation and safety
